Specifications
Commercial   model
75A6K
Factory model
75A51HXVT
Factory
Qingdao
Description

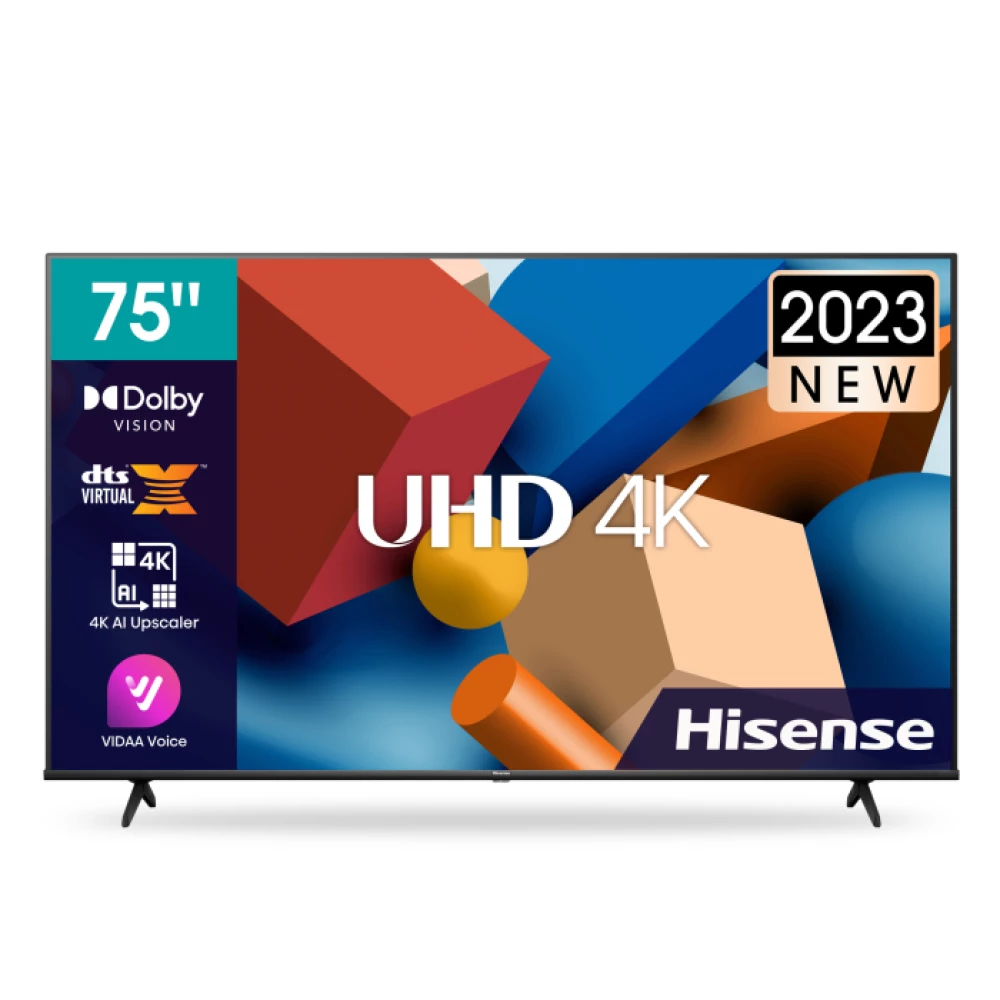

189cm (75" ) Direct LED Television
Document

Specifications form version
HA230216
Circulation
Restricted, internal use only
Status
Confirmed
Revision number
1
Date
2023/02/16
Issued by
Al
Image   display

Panel   manufacturer
Hisense
Panel   model
HD750Y1U72-TC
Active   display area, horizontal dimension
1649,66
Active   display area, vertical dimension
927,94
Screen   size (rounded to nearest integer)
189
Screen   size (rounded to nearest integer)
75
Display   technology
LCD/ LED lit
Backlight   source
Direct LED
Resolution   (Horiz x Vert)
3840X2160
Screen   curvature radius
-
Colour   depth
8bit
Image   refresh frequency
60
Smooth   motion rate
120
3D image
-
Typical brightness of white
350
Native   contrast ratio
1200：1
Viewing   Angle (Horiz / Vert)
178/ 178
Quantum   dot
No
Wide   colour gamut
No
KSF   phosphor
No
UHD   Premium
No
Response   Time
8
Connectivity

RF- Radio frequency input
1
AV input
1
AV output
0
USB interface type 3.0 (Qty /   List….)
0
USB interface type 2.0 (Qty /   List ….)
2/ USB1, USB 2
Optical digital audio output   (SPDIF)
1
Earphone jack
1
HDMI   ports

HDMI inputs
3
HDMI type 8K@60Hz
No
HDMI type 4K@60Hz with HDCP   version 2.2
3*HDMI2.0 (ALLM, VRR(48-60Hz))
HDMI 2.1 compliant input
NO
Enhanced Audio Return Channel   ( eARC)
Yes
CEC- Consumer Electronics   Control via HDMI
Yes
Smart   TV

Ethernet port (RJ45   connector)
1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..}
a, b, g, n, ac
Wi-Fi bands
2.4/5.0
DLNA compliance
Yes
Bluetooth / BT version
Yes / 5.0
Anyview (Screen mirroring)
Yes
BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay)
Iview, SBS on Demand, 9Now
Installed Applications {List   ……}
Netflix/Youtube/Prime Video……
Freeview Plus - HbbTV 2.0
Yes
Web browser [Chrome | Opera |   Other]
Odin
Digital   TV reception

Digital broadcating (DVB-T /   DVB-T2)
Yes / Yes
Video decoder (MPEG2 / MPEG 4)
Yes / Yes
LCN- Logical channel number   and DTV Service name support
Yes
Teletext / Teletext signal interruption (TAB   compliant) / 16 : 9 TLTX
Yes / Yes / Yes
Subtitles
Yes
EPG- Electronic programming   guide, 7 days for all services
Yes
Audio description (vision   impairment aid)
Yes
Parental rating lock
Yes
Analog Tuner
Yes
Image   processing

Backlight control
Yes
Light sensing
No
Dynamic backlight control
No
Frame rate control
No
Variable Refresh Rate (VRR)
Yes
FreeSync
No
Auto Low Latency Mode for VRR
Yes
Local dimming/ controllable   zones
No
Zoom function settings
Automatic/ 16:9/ 4:3/   Panoramic/
     Movie Zoom/ Direct
HDR - High Dynamic Range for   luminance (DMP / Netflix / HDMI)
Yes / Yes / Yes
HDR system (HDR10 / HDR10+ /   Dolby Vision)
No/ No / YES
HLG (Hybrid Log-Gamma) for   HDR
YES
HEVC (H.265) decoder
Yes
Motion enhancement and   compensation (MEMC)
Yes
Picture mode
Standard,Cinema Day,Cinema Night,Dynamic,Sports
Sound

Audio power output per channel
15
Number of speakers (Tweeter /   Midrange / Woofer)
0/2 /0
Automatic volume level (AVL)
Yes
Audio equalizer
Yes
Dolby Digital
Yes
Audio enhancement -Type {SRS,   BBE, SAP, DBX-TV….}
DTS Virtual X
Lip-sync adjustment
Yes
Sound mode
Stand,Theatre,Music,Speech,Late Night,Sports.
Features

On/off timer
Yes
Power off if no signal
Yes
Sleep timer
Yes
Program lock
Yes
OSD transparency control
Yes
User interface
VIDAA U6
Software version OSD   indication
Yes
Legal requirements: Disclaimer   / Acceptance of Terms
Yes / Yes
Favourite channels list
Yes
Electronic point of sales   (E-POS)
Yes
OTA- Over the air software   updates
Yes
Voice command
Yes
Screen mirroring {Miracast,   Anyview Cast, ...}
Screen Sharing
Smartphone remote control   application {Rremote Now, ...}
Yes
Replaceable demo video for   Store mode
Yes
Remote control via serial   port
No
USB   media player

Personal Video Recorder
Yes
Time Shift
Yes
DTV Recording (EPG scheduling   / start from Standby )
Yes / Yes
DivX decoder
No
MPEG4 (H.264) / H.265 decoder
Yes / Yes
DMP- Digital media player   content (Music / Video / Photos / Text)
Yes / Yes / Yes / No
DMP Auto-play
No
DMP for UHD content via USB
Yes
DMP File allocation table (FAT   / FAT32 / exFAT / NTFS)
Yes / Yes / No / Yes
PVR File allocation table (FAT / FAT32 / exFAT   / NTFS)
Yes / Yes / No / Yes
Hotel   lock

Protected Hotel lock submenu   (Password / fixed code)
No / Yes
Clone function for programs,   sound and image settings.
Yes
Sub-menu lock, including   tuning lock
Yes
Keyboard lock
Yes
Maximum volume lock
Yes
Power on volume
Yes
Power on, apply default   sound/image settings
No
Power on source selection
Yes
Power on RF channel selection
Yes
Power on mode (On / Standby /   Last)
Yes / Yes / Yes
Inputs access (Enable /   Disable)
Yes
Hardware

Processor / Cores
MT9602R
Dual Tuner
No
Colour (Front bezel, rear,   stand)
Black / Black / Black
Speakers mounted in enclosure
Yes
Mains power switch
No
Swivel base
No
Compact packaging
Yes
Supply range [Voltage / Frequency ]
100 ~ 240V，50Hz/60Hz
Standby consumption
< 0.5W
Maximum time delay Power On to   sound an image
30
Installation



Stand area (Width / Depth)
1119×369
Wall mount dimensions (Horiz   x Vert)
400×300
Wall mount, screw thread
M6/10
VESA compliance
Yes
Detachable power cord
Yes
Power cord length
155
Accessories



Remote controller (Technology   / Part number )
IR /EN2K36H(0011)
Battery (size / quantity)
AAA / 2
User manual (Available online)   / Quick setup guide (Print)
1 / 1
Warranty [In User manual | In   separate sheet]
In separate sheet
Skype camera (Qty / Part   number)
-
3D glasses type [Passive | Shutter] / Link [RF | IR |   BT]
-
3D glasses (Qty / Part   number)
-
Dimensions

Dimensions with stand (W x H   x D)
1677×1040×369
Dimensions without stand (W x   H x D)
1677×961×85
Carton box dimensions (W x H   x D)
1867×1149×204
Net weight (with stand /   without stand)
26.3Kg/26Kg
Gross weight
38.5Kg
Container load (20ft / 40ft /   40ft HC)
68/138/138
Licensing   and certification

EMC- Electromagnetic   Compatibility
Yes
CB- Electrical safety
Yes
HDMI
Yes (Hisense internal test)
Dolby Digital
Yes
MEPS- Test report
Yes
ROHS
No
Electrical safety conformity for Australia
Yes
Documentation

CB report and certificate
Yes
EMC report and certificate
Yes
Power cord, plug and connector   Australian safety approval
Yes
