Specifications
Commercial   model

55U6K
Factory model

55U68GXVT
Factory

Qingdao
Description

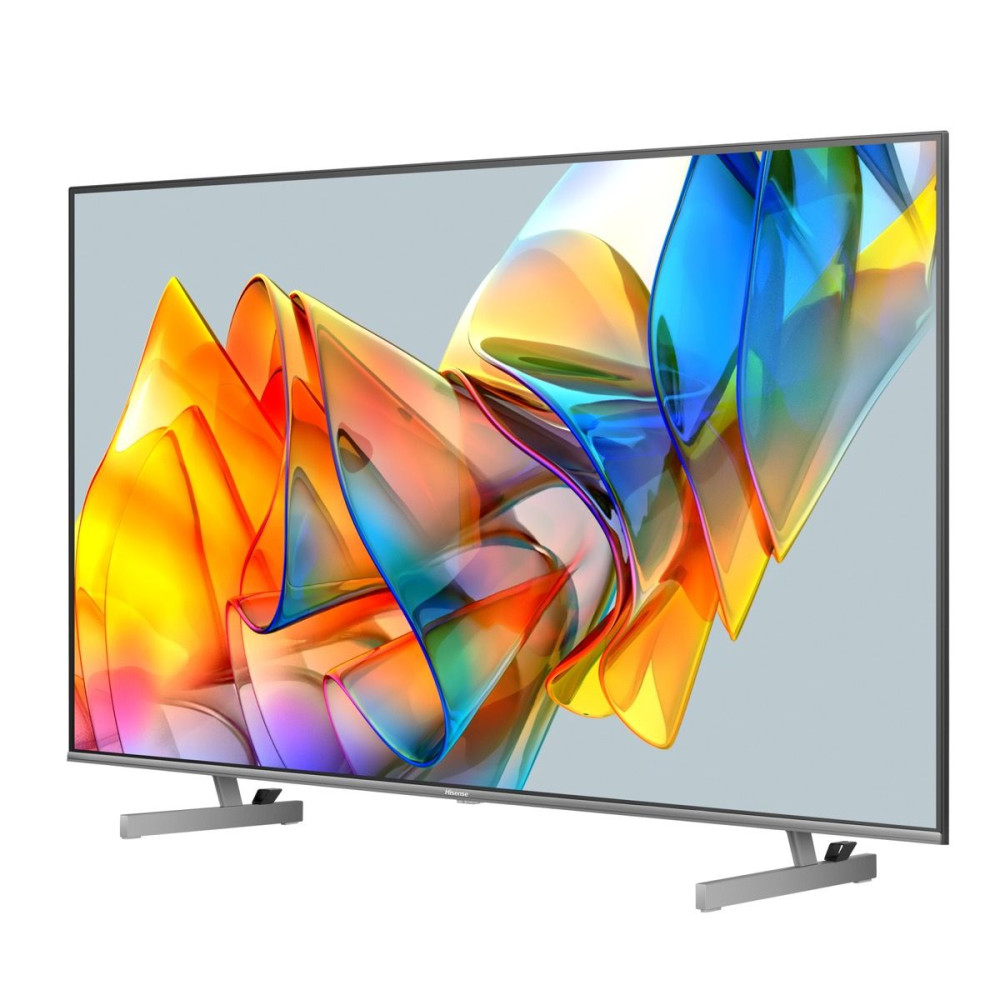

139cm (55" ) Direct LED Television



Specifications form version

HA220120
Circulation

Restricted, internal use only
Status

Confirmed
Revision number

1
Date

27-01-22
Issued by

Al



Panel   manufacturer

Hisense
Panel   model

LCM:HD550Y3U51-TCL7, Open Cell : T550QVN10.0
Active   display area, horizontal dimension
mm
1209.6
Active   display area, vertical dimension
mm
680.4
Screen   size (rounded to nearest integer)
cm
139
Screen   size (rounded to nearest integer)
inch
55
Display   technology

LCD/ LED lit
Backlight   source

Direct LED
Resolution   (Horiz x Vert)
pixel
3840X2160
Screen   curvature radius
mm
-
Colour   depth
bit
8bit+FRC
Image   refresh frequency
Hz
60
Smooth   motion rate

120
3D image

-
Typical   brightness of white
cd/m2
400
Native   contrast ratio

4000 : 1
Viewing   Angle (Horiz / Vert)
Degrees
178/ 178
Quantum   dot

Yes
Wide   colour gamut

Yes
KSF   phosphor

Yes
UHD   Premium

No
Response   Time
ms
8



RF- Radio frequency input

1
AV input

1
AV output

0
USB interface type 3.0 (Qty /   List….)

0
USB interface type 2.0 (Qty /   List ….)

2
Optical digital audio output   (SPDIF)

1
Earphone jack

1



HDMI inputs

3
HDMI type 8K@60Hz

No
HDMI type 4K@60Hz with HDCP   version 2.2

HDMI 1, HDMI 2, HDMI3
HDMI 2.1 compliant input (4K@120Hz)

No
Enhanced Audio Return Channel   ( eARC)

Yes
CEC- Consumer Electronics   Control via HDMI

Yes



Ethernet port (RJ45   connector)

1
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..}

a, b, g, n, ac
Wi-Fi bands
GHz
2.4 / 5
DLNA compliance

Yes
Bluetooth / BT version

Yes / 5.0
Anyview (Screen mirroring)

Yes
BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay)

Iview, SBS on Demand, 7 Plus, 9 Jumpin
     (Tenplay available from Playsore)
Installed Applications {List   ……}

Netflix/Youtube/Prime Video……
Freeview Plus - HbbTV 2.0

Yes
Web browser [Chrome | Opera |   Other]

Odin



Digital broadcating (DVB-T /   DVB-T2)

Yes / Yes
Video decoder (MPEG2 / MPEG 4)

Yes / Yes
LCN- Logical channel number   and DTV Service name support

Yes
Teletext / Teletext signal interruption (TAB   compliant)

Yes / Yes
Subtitles

Yes
EPG- Electronic programming   guide, 7 days for all services

Yes
Audio description (vision   impairment aid)

Yes
Parental rating lock

Yes
Analog Tuner

Yes



Backlight control

YES
Light sensing

No
Dynamic backlight control

YES
Frame rate control

No
Variable Refresh Rate (VRR)

Yes
FreeSync

No
Auto Low Latency Mode(ALLM)

Yes
Local dimming/ controllable   zones

Yes
Zoom function settings

Automatic/ 16:9/ 4:3/   Panoramic/
     Movie Zoom/ Direct
HDR - High Dynamic Range for   luminance (DMP / Netflix / HDMI)

Yes / Yes / Yes
HDR system (HDR10 / HDR10+ /   Dolby Vision)

Yes /Yes/Yes
HLG (Hybrid Log-Gamma) for   HDR

Yes
HEVC (H.265) decoder

Yes
Motion enhancement and   compensation (MEMC)

Yes
Picture mode

standar,Dynamic dark,vivid……



Audio power output per channel
Watt
10
Number of speakers (Tweeter /   Midrange / Woofer)

0 /2 /0
Automatic volume level (AVL)

Yes
Audio equalizer

Yes
Dolby Digital

Yes
Audio enhancement -Type {SRS,   BBE, SAP, DBX-TV….}

Dolby ATMOS
Lip-sync adjustment

Yes
Sound mode

Stand,Theatre,Music,Speech,Late Night,Sports



On/off timer

Yes
Power off if no signal

Yes
Sleep timer

Yes
Program lock

Yes
OSD transparency control

Yes
User interface

VIDAA U6
Software version OSD   indication

Yes
Legal requirements: Disclaimer   / Acceptance of Terms

Yes / Yes
Favourite channels list

Yes
Electronic point of sales   (E-POS)

Yes
OTA- Over the air software   updates

Yes
Voice command

VIDAA voice
Screen mirroring {Miracast,   Anyview Cast, ...}

Airplay,Miracast,DLNA,Anyview Cast
Smartphone remote control   application {VIDAA app, ...}

Yes
Replaceable demo video for   Store mode

Yes
Remote control via serial   port

No



Personal Video Recorder

Yes
Time Shift

Yes
DTV Recording (EPG scheduling   / start from Standby )

Yes / Yes
DivX decoder

No
MPEG4 (H.264) / H.265 decoder

Yes / Yes
DMP- Digital media player   content (Music / Video / Photos / Text)

Yes / Yes / Yes / No
DMP Auto-play

No
DMP for UHD content via USB

Yes
DMP File allocation table (FAT   / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes
PVR File allocation table (FAT / FAT32 / exFAT   / NTFS)

Yes / Yes / No / Yes



Protected Hotel lock submenu   (Password / fixed code)

No / Yes
Clone function for programs,   sound and image settings.

Yes
Sub-menu lock, including   tuning lock

Yes
Keyboard lock

Yes
Maximum volume lock

Yes
Power on volume

Yes
Power on, apply default   sound/image settings

No
Power on source selection

Yes
Power on RF channel selection

Yes
Power on mode (On / Standby /   Last)

Yes / Yes / Yes
Inputs access (Enable /   Disable)

No



Processor / Cores

MT9602RAATAC
Dual Tuner

No
Colour (Front bezel, rear,   stand)

dark grey/ Black / dark grey
Speakers mounted in enclosure

Yes
Mains power switch

No
Swivel base

No
Compact packaging

Yes
Supply range [Voltage / Frequency ]
Volt / Hz
AC100~240V,50Hz/60Hz
Standby consumption
Watt
< 0.5W
Maximum time delay Power On to   sound an image
sec
30



Stand area (Width / Depth)
mm
833×313
Wall mount dimensions (Horiz   x Vert)
mm
300×200
Wall mount, screw thread
mm
M6/10
VESA compliance

Yes
Detachable power cord

Yes
Power cord length
cm
155



Remote controller (Technology   / Part number )

IR /EN2V36H
Battery (size / quantity)

AAA / 2
User manual (Available online)   / Quick setup guide (Print)

1 / 1
Warranty [In User manual | In   separate sheet]

In separate sheet
Skype camera (Qty / Part   number)

-
3D glasses type [Passive | Shutter] / Link [RF | IR |   BT]

-
3D glasses (Qty / Part   number)

-



Dimensions with stand (W x H x   D)
mm
1230×777×313
Dimensions without stand (W x   H x D)
mm
1230×711×78
Carton box dimensions (W x H x   D)
mm
1362×831×145
Net weight (with stand /   without stand)
kg
14.2 /13.9
Gross weight
kg
19.2
Container load (20ft / 40ft /   40ft HC)

132/270/405



EMC- Electromagnetic   Compatibility

Yes
CB- Electrical safety

Yes
HDMI

Yes (Hisense internal test)
